Inline Espag Rods

Inline Espag Rods
Inline Espag Rods - Image 2
Inline Espag Rods - Image 3

Inline Espag Rods

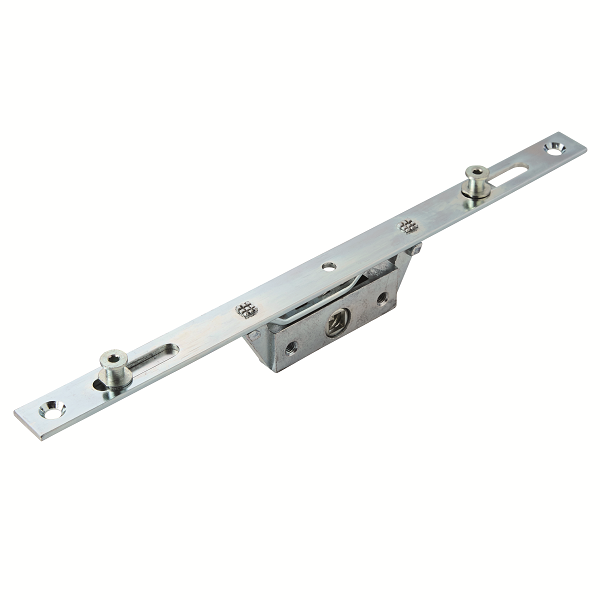

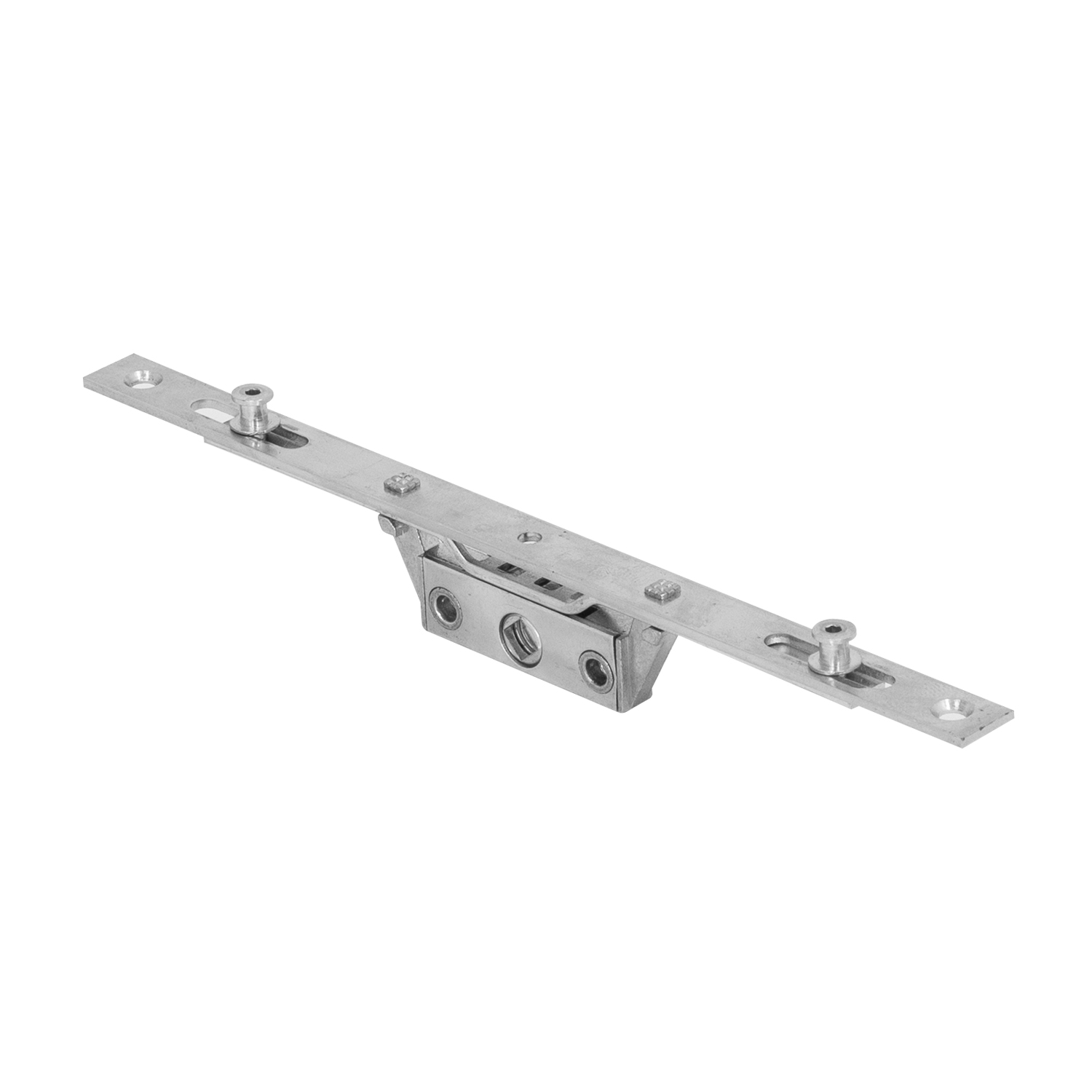

Our popular Inline Espagnolette Rod.  Available in a range of lengths and suitable for timber or PVCu windows.

  • 22mm Backset
  • 16mm wide faceplate
  • 7mm x 7mm Spindle drive
  • 8mm High Cams
  • Durable Trivalent coating-Corrosion resistance meets BS EN 1670:1998, Grade 3
  • Performance tested to 25,000 operations
  • Keeps sold separately – please click here
  • See below for dimensions & more information

£2.30 – £5.80 ex. VAT

x

Description

Not sure it will fit? Ring for more information

Features & Benefits
  • Trivalent Silver finish
  • Eccentric cams 8mm high
  • 22mm backset
  • Universal Keep suits the majority of profiles
Assessment Data
  • Performance: Endurance tested tp 25,000 operations
  • Corrosion Resistance: Meets requirements of BS EN 1670:1998, Grade 3 (96 Hour Salt Spray)
Material Data
  • All Metal Components: Steel C1008
  • Gearbox Body: Zinc BS1004A
  • Coating Details: Steel components Trivalent plated 20-25 microns coating thickness

Additional information

Weight N/A
Length

9.84" (250mm Long), 15.8" (400mm Long), 23.6" (600mm Long), 31.5" (800mm Long), 39.3" (1000mm Long), 47.3" (1200mm Long)
Number Of Cams

2, 3, 4

Our Terms and Conditions contain important information relating the purchase and appropriate usage of some of our products. Click here to view our terms and conditions.

Bulk Pricing

VariationPrice Quantity
Product Code
ER228250
Length
9.84" (250mm Long)
Number Of Cams
2
1 - 9
£2.30
10 - 29
Save 9%£2.10
30 - 39
Save 13%£2.00
40+
Save 20%£1.85
Product Code
ER228400
Length
15.8" (400mm Long)
Number Of Cams
2
1 - 9
£2.50
10 - 29
Save 4%£2.40
30 - 39
Save 6%£2.35
40+
Save 8%£2.30
Product Code
ER228600
Length
23.6" (600mm Long)
Number Of Cams
2
1 - 9
£2.99
10 - 29
Save 5%£2.85
30 - 39
Save 6%£2.80
40+
Save 8%£2.75
Product Code
ER228800
Length
31.5" (800mm Long)
Number Of Cams
2
1 - 9
£3.80
10 - 29
Save 5%£3.60
30 - 39
Save 8%£3.50
40+
Save 11%£3.40
Product Code
ER2281000
Length
39.3" (1000mm Long)
Number Of Cams
3
1 - 9
£5.60
10 - 29
Save 5%£5.30
30 - 39
Save 7%£5.20
40+
Save 11%£4.99
Product Code
ER2281200
Length
47.3" (1200mm Long)
Number Of Cams
4
1 - 9
£5.80
10 - 29
Save 3%£5.60
30 - 39
Save 7%£5.40
40+
Save 12%£5.10
Product Code
ER2281200R
Length
47.3" (1200mm Long)
Number Of Cams
4
1 - 9
£5.80
10 - 29
Save 3%£5.60
30 - 39
Save 7%£5.40
40+
Save 12%£5.10
